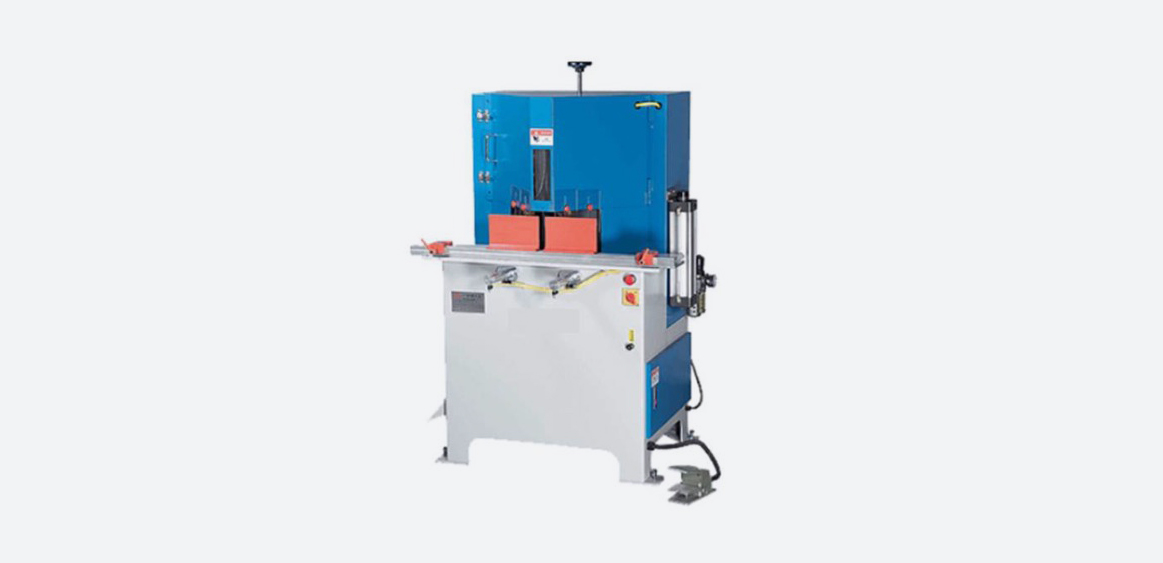

Spida Machinery - FOM Industrie Blitz Alva 500

Vertical Twin Mitre Saw

Specifications

  • Model: JS-200

  • Cutting angle: 45°

  • Cutting width: 90mm

  • Cutting height: 280mm

  • Saw blade sizes: 355mm x 25.4mm x 3.0mm x 120 Teeth

  • Spindle speed: 3200RPM

  • Spindle motors: 3HP x 2

  • Clamping cylinders: 4 Vertical clamps and 2 Horizontal clamps

  • Cutting method: Staggered blade vertical cutting

  • Table height: 850mm

  • In-feed extension table: 1525mm

  • Out-feed extension table: 1525mm

  • N.W. / G.W.: 448 / 520kg

  • Machine dimensions: 1000 x 910 x 1580mm

  • Packing dimensions: 1200 x 1090 x 1830mm

Features

  • Specially designed for cutting high workpieces

  • A mitre saw features over pivot type

  • Movable head roller table 2.5m - standard configuration

  • Saw blades feed vertically. Maximum height of cutting is normally 180mm, however, specific to Spida, the saw is built with 280mm cutting height. This extended stroke length to the saw travel, means it's a great Liner Saw, allowing you to cut wider liners.

  • Automatic oil mist cooling for saw blades during cutting. Only present with the JS-200 Aluminium cutting model

  • Vertical and horizontal workpiece clamping design ensures extremely firm clamping for any type of aluminium and timber workpiece

  • Saw blades move vertically on two precision shafts, assuring consistent cutting

  • Compensation for saw blade wear is easy to adjust

  • Saw blade height is adjustable for saving time of cutting

  • Model JS-200W for wood applications

  • Model JS-200 for aluminium applications

* Specifications & design are subject to change, please confirm details when placing your order.
