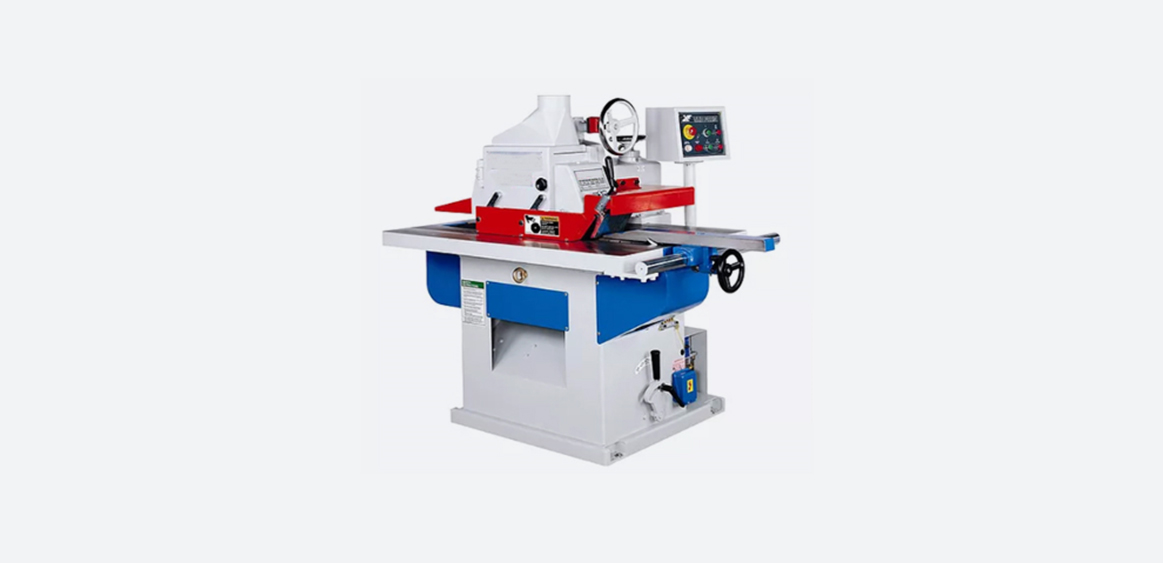

Spida Machinery - FOM Industrie Blitz Alva 500

Straight-Line Powered Rip Saw

Specifications

  • Maximum working thickness: 85mm

  • Saw blade diameter: 200 - 300m (160mm)

  • Distance from blade to arm: 400mm

  • Table size: 1253 x 780mm

  • Feed speed (3 speeds): 15 / 20 / 25 M/min

  • Saw arbor diameter: Ø25.4mm

  • Saw arbor motor: 10HP / 15HP

  • Feed motor: 1HP (2HP)

  • Saw arbor speed: 4200RPM

  • Dust exhaust diameter: Ø5"

  • Width of chain block: 140mm

  • Net weight: 900kg

  • Gross weight: 1050kg

  • Packing dimensions: 1660 x 1010 x 1360mm

Features

  • Base is ruggedly fabricated to provide a solid foundation and vibration free cutting

  • End table swings downward and prevents short workpieces and thin edgings from sliding

  • Triple anti-kickback fingers provide maximum operator safety

  • The sawblade is easily accessed for replacement

  • Control panel located within easy reach position for operation convenience

  • The oil lubricator provides the correct amount of oil to pubricate the track sideways

  • This machine produces accurate edge for high accuracy glue joint

  • 400mm capacity from blade to arm

  • Powerful 10HP (15HP) motor drive

* Specifications & design are subject to change, please confirm details when placing your order.
