Fom Industrie Modus

Overview

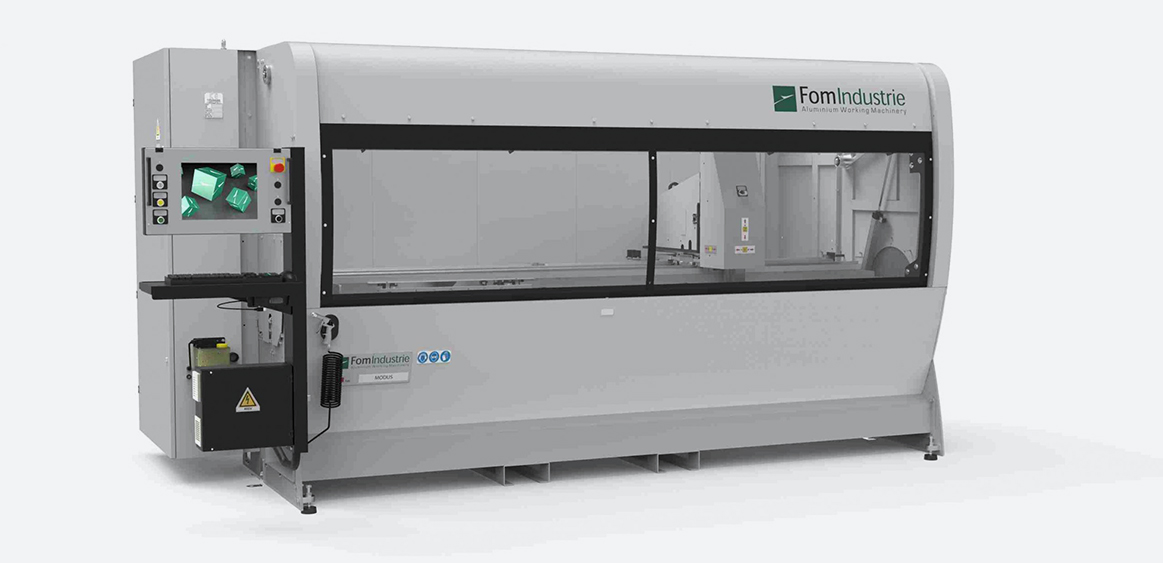

CNC Machining centre with 3 controlled axes and worktable with positioning 0°/90°/180° plus angular positioning control of the worktable (optional) on all angles (from 0° to 180°).

Specifications

  • Guard with receding frontal door with pneumatic opening

  • CNC controlled interpolating X, Y, and Z

  • Touch screen console 15” complete with PC

  • Axes sliding X,Y,Z on linear guides with high precision

  • X-axis movement with high-pressure reducer

  • Y and Z axes movement with drive with ground recirculating ball-screw

  • Pneumatic rotation of the work table 0° to 90° to 180°

  • Work table height 850mm

  • Pneumatic vices (No. 4) that translate along the work table with quick positioning (without use of keys or accessories) of the vice pads (patented)

  • Dual working pressure with safety valves for piece clamping vices

  • Clamps positioning readout on the work table by CN

  • AUTOMATIC tool change ISO 30 cone with cone tool-holder (6 tools)

  • Automatic update of machining parameters when the tool diameter and/or length are modified

  • Milling capacity: X= 2.985mm, Y= 250mm, Z= 120mm

  • Spindle speed: 1000/12000rpm, 3kW

  • Minimum quantity lubrication (MQL) with pure oil

  • Set-up for central greasing for recirculating ball-screws and linear guides

  • The profile being machined can be greater than the X milling depth (2.985mm) alternatively using the pneumatic stops on the left and the right of the machine

  • LH and RH profile pneumatic stop

  • Chip bin

  • Set up for fumes extraction

  • Max tool height (spindle end projection) 130 mm

  • Max tool height 45°-135° and intermediates angles (spindle end projection) 95 mm (on request)

FEATURES

  • Pneumatic rotation of the work table 0° to 90° to 180°

  • Servo-ventilated three-phase spindle motor 3kW Regulation of spindle rpm by numerical control – inverter (1000/12000rpm)

  • 6 position tool magazine (ISO 30)

  • No.4 pneumatic vices with manual positioning

  • LH and RH receding pneumatic stop

  • Minimum quantity lubrication (MQL) with pure oil

  • Greasing gun

  • Chip bin

  • Guard with receding frontal door with pneumatic opening

  • Set up for fumes extraction

  • Electronic equipment ”Power E-Box”

  • Adjustable console with PC, Touch screen 15” keyboard and mouse

  • Software licence for FOMCAM program

  • FOMCAM training course (FOM premises)

Options
  • Please see “Optionals” in brochure available to download above

* Specifications & design are subject to change, please confirm details when placing your order.
