Containing the Floor Truss Table (with a durable solid steel top, providing rapid unencumbered use of plating and pressing) and the Floor Preset Roller, this system is designed to quickly produce wooden floor trusses.

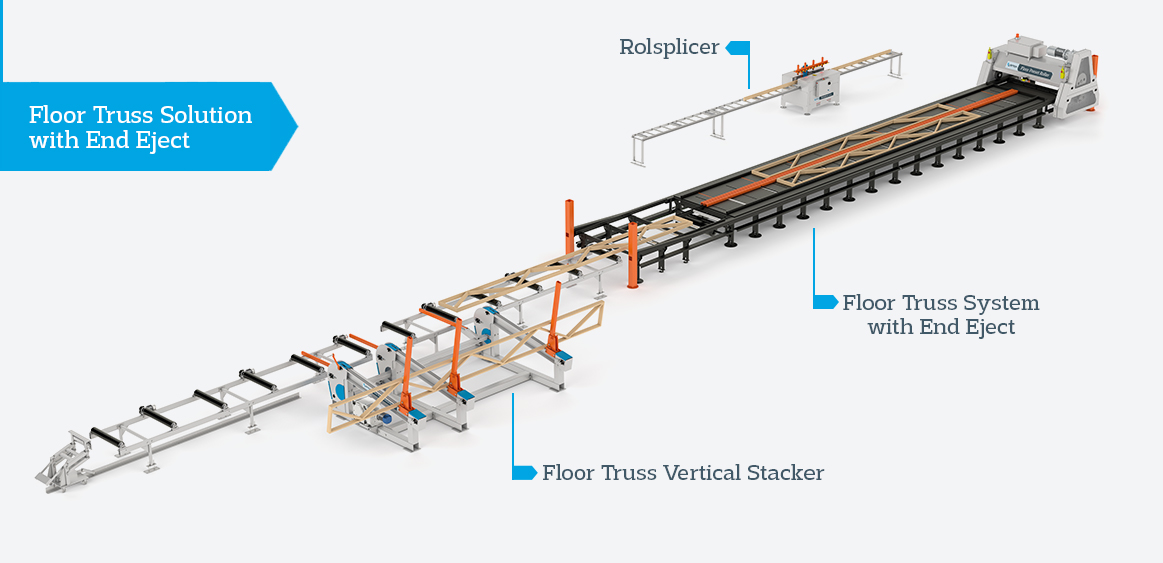

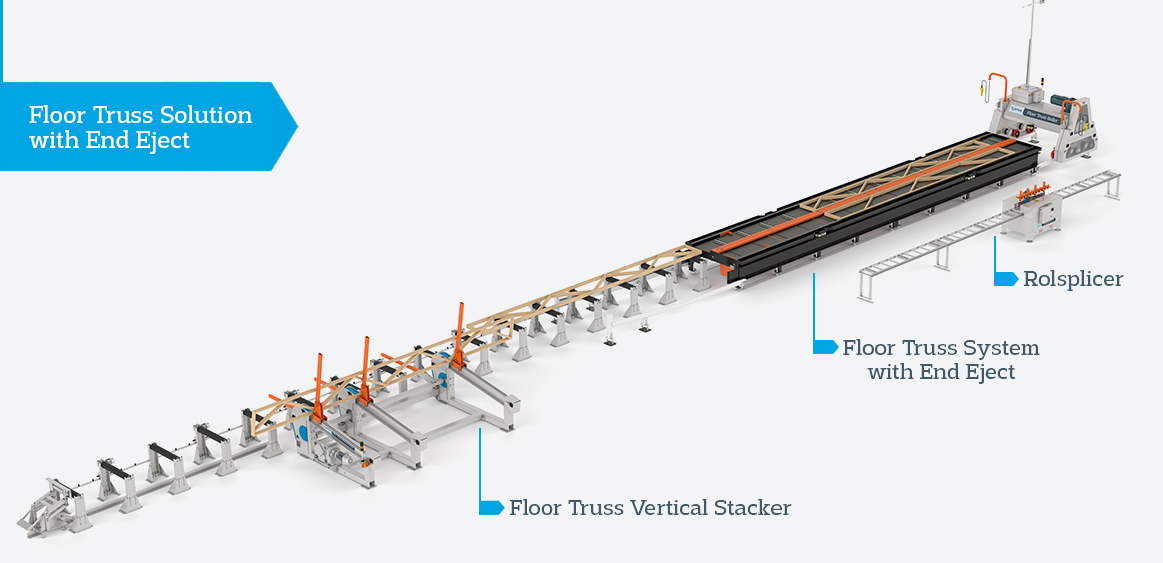

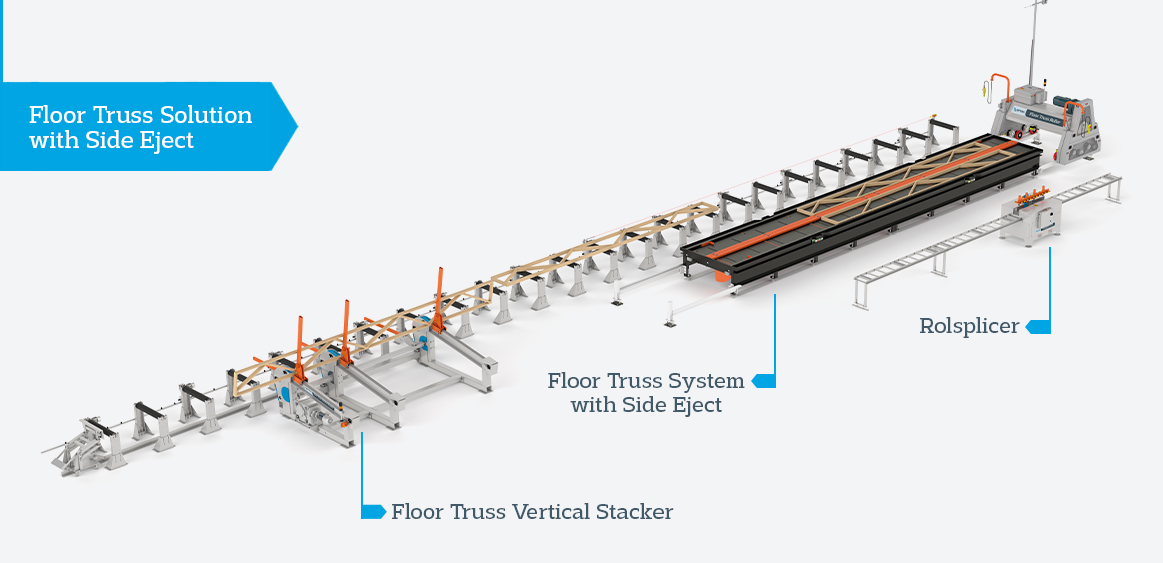

With the Floor Truss System, you can choose the best option for your operations and space – choosing from side eject or end eject. The side eject option contains pop up assist mechanisms on the finishing side of the table to allow the operator to grasp the truss for removal. The end eject option contains pop up steel rollers to assist in moving the truss to a Finishing Press at the end of the table.
Both systems have a cambered clamping system on both sides of the table and a flip jig system, to transfer the truss from the build side to the finishing side of the table.
Max Truss Height – 26 inches
Max Truss Length – 40 ft
Min/Max Lumber Dimension 4 x 2, 6 x 2
Working Height – 29 -33 inches
Machine Mass - 27,000lb
Electrical Requirement – Table: 110V1Ph 20A Roller: 460V 3Ph 32A
Air Requirement - 2 CFM @ 6-8 bar
Overall Length, Width, Height of Machine – 653 x 115 x 90 inches
Overall Length, Width, Height of Machine - 704 x 115 x 90 inches
